Բարձրորակ, լիովին սինթետիկ փոխանցման յուղ, որը հիմնված է պոլիալֆաոլեֆինների (PAO) վրա՝ հավելումների և արգելակիչների հատուկ համալիրի ավելացումով, որոնք ապահովում են փոխանցման իդեալական աշխատանքը:

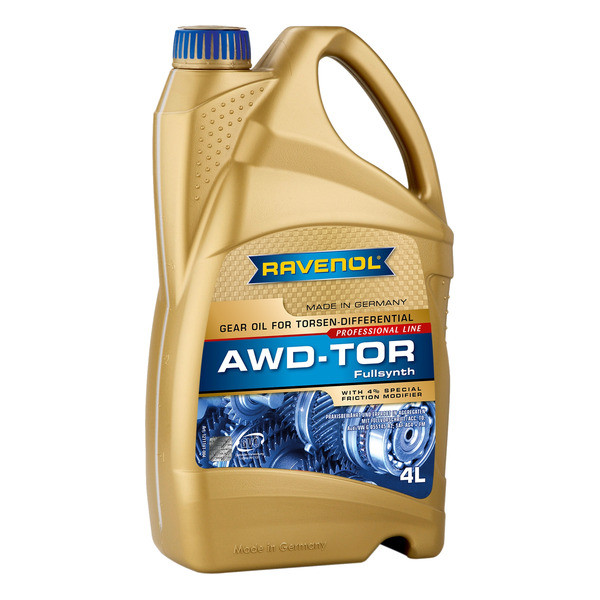

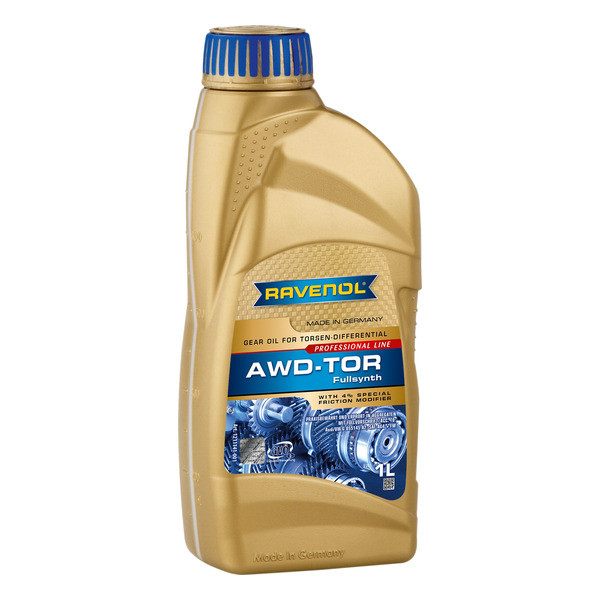

RAVENOL AWD-TOR FLUID is a high quality full synthetic formulation based on polyalphaolefins (PAO) with a special additive and inhibition to ensure proper functioning of the gearbox.
RAVENOL AWD-TOR FLUID is a special transmission oil for transfer cases of four-wheel drive systems from Torsen type of VW and AUDI. To improve the operating characteristics of intermittent loads, 4% of a particular friction modifier is used in the recipe RAVENOL AWD-TOR FLUID guarantees low wear and, thanks to its excellent properties, ensures a long service life of the gearbox.
Application Note
RAVENOL AWD-TOR FLUID is suitable for use in transfer cases of Torsen type four-wheel drive systems from VW, AUDI and other vehicle manufacturers.
RAVENOL AWD-TOR FLUID is excellently suited for use in normal road traffic as well as in motorsports.Observe manufacturer's instructions.
Characteristics
- An addition of 4% of a special friction modifier
- Excellent flowability at low temperatures
- Low wear
- High, stable viscosity index
- Reliable protection against wear, corrosion and foaming
- Excellent viscosity-temperature behavior
- Neutral behavior towards sealing materials
RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
Բնութագրերը
Կարգավորում | Արժեք | Աուդիտ |
---|---|---|
Լայնությունը, mm | 85 | |
Երկարություն, mm | 185 | |
Բարձրություն, mm | 340 | |
Brand | RAVENOL | |
Համապատասխանում է ապրանքներին | VW G 055 145 | |
Հատուկ հզորություն 20°C-ի դեպքում, գ/սմ³ | 864 | EN ISO 12185 |
Գույն | Brown | տեսողական |
Մածուցիկություն 100 °C-ում, mm²/s | 16.7 | DIN 51562-1 |
Մածուցիկություն 40 °C-ում, mm²/s | 107.9 | DIN 51562-1 |
Մածուցիկության ինդեքս VI | 168 | DIN ISO 2909 |
Բրուկֆիլդի մածուցիկություն -40°C-ում, mPa*s | 48.700 | ASTM D2983 |
Բյուրեղացման ջերմաստիճան, °C | -54 | DIN ISO 3016 |
Չորս գնդիկի քսման մեքենայի փորձարկում (մաշվածություն), mm | 0.71 | DIN 51350-3 |
Չորս գնդակների ճնշման փորձ (էքստրեմալ ճնշում), Ն | 3600 / 3800 | DIN 51350-3 |
Փրփուրի առաջացում I՝ 24°C-ում, ml/ml | 0/0 | ASTM D892 |
Փրփուրի առաջացում II՝ 93.5°C-ում, ml/ml | 0/0 | ASTM D892 |
Փրփուրի առաջացում III՝ 24°C-ից մինչև 93.5°C, ml/ml | 0/0 | ASTM D892 |
Պղնձյա շերտի փորձարկում 150°C-ում | 1a | ASTM D130 |
Քաշը, kg | 3.774 |
Toyota | 0888581086 |
Volkswagen Group | G055145A1 |
Volkswagen Group | G055145A2 |
Volkswagen Group | G055145S0 |
Volkswagen Group | G055145S2 |
